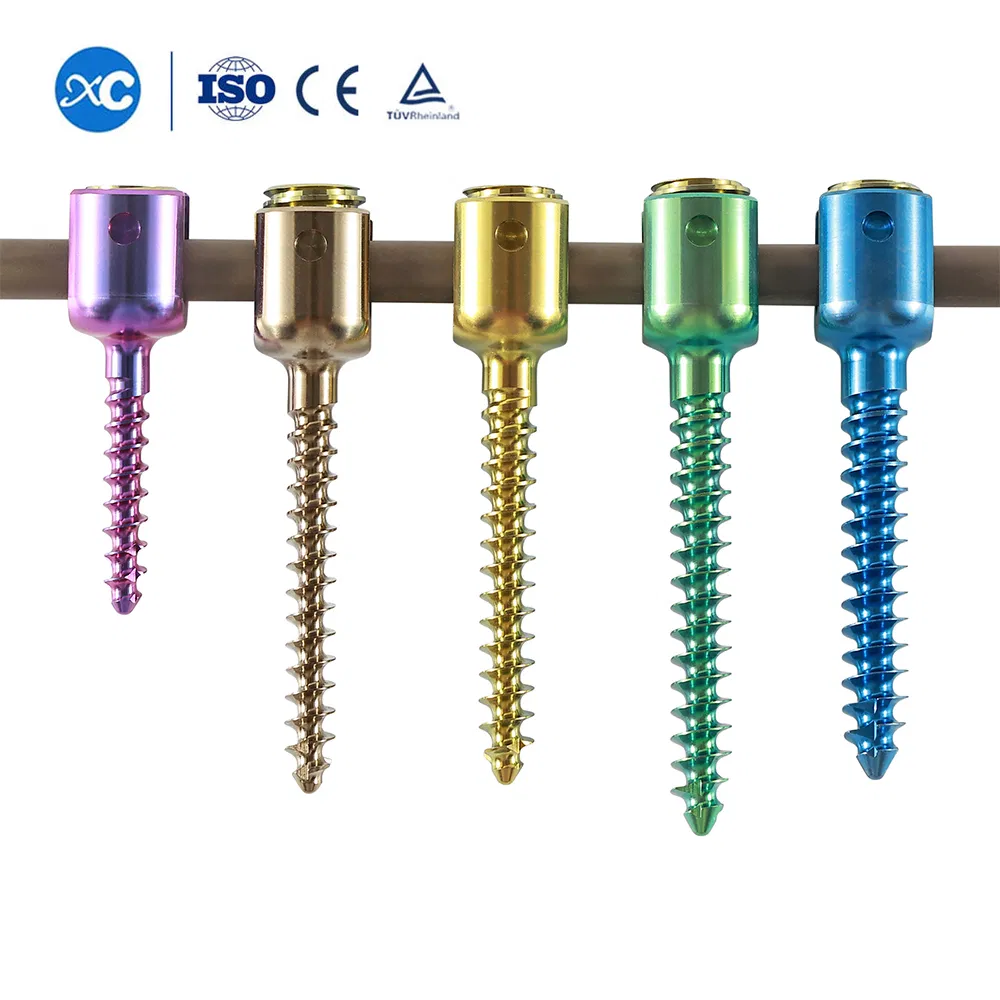

| Spinal Pedicle Screw System (6.0mm System) Specification | |||||
|---|---|---|---|---|---|
| Screw Type | Sizes (Diameter x Length) | Screw Type | Sizes (Diameter x Length) | Components | Details |
| Monoaxial Pedicle Screw | Φ4.5×25mm to Φ6.5×50mm | Monoaxial Reduction Screw | Φ5.0×30mm to Φ7.0x50mm | Rod | Φ6.0×100mm to Φ6.0×400mm |
| Polyaxial Pedical Screw | Φ4.5×20mm to Φ7.0x55mm | Polyaxial Reduction Screw | Φ5.0×30mm to Φ6.5×40mm | Iliac Screw | 7.5*65 to 8.0*80 |
| Gradient Titanium Rod | 3.5*100-6.0*200mm | Crosslink | 60mm, 70mm, 80mm | Shifter | 6.0*30 to 6.0*60 |

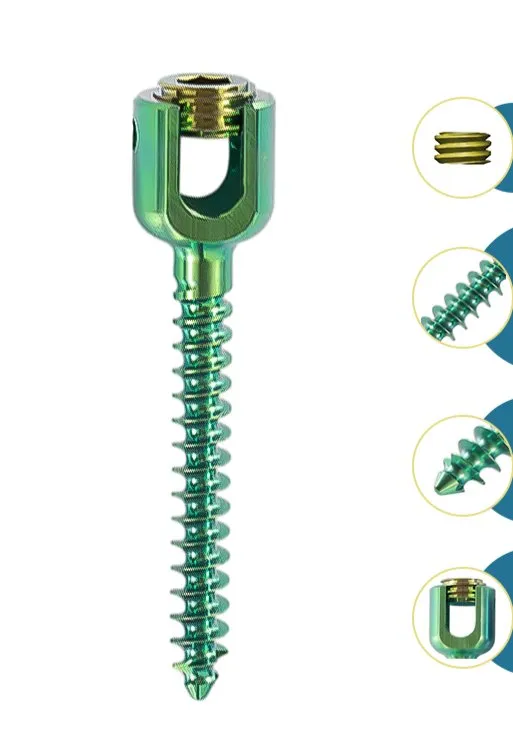

Comprehensive Screw Offering: 4.0mm - 7.5mm diameters available.
Multiple curve correction and derotation options with cortical/cancellous threads ensure strong, reliable fixation.
Self-Tapping, Dual-Lead, Optimized Threadform for fast delivery and superior pull-out resistance.
Strong head-body handles heavy loads in kyphotic and scoliotic curves.
Extended tabs with notches on both sides facilitate tab removal and provide a smooth break-off surface.

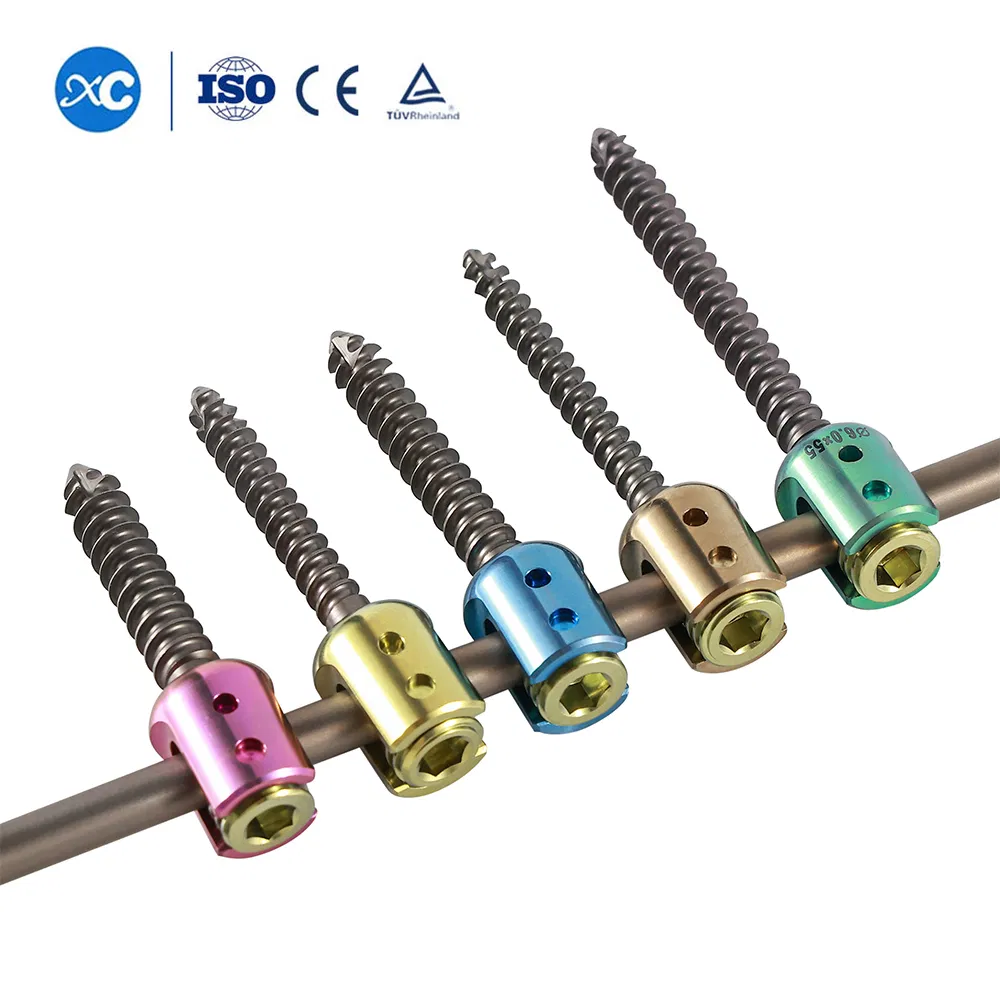

Different screw sizes with different colors for easy identification during operations.

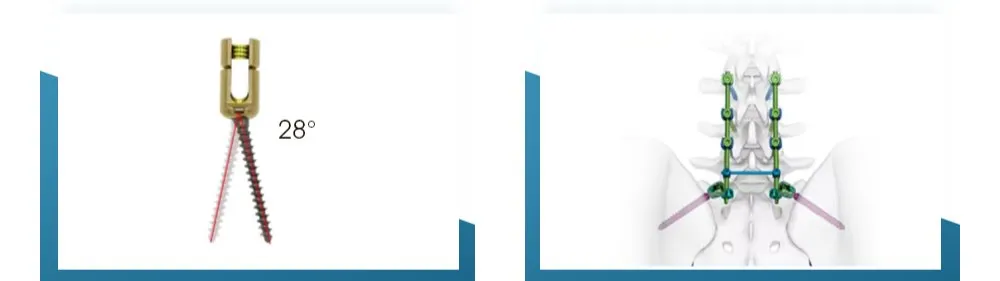

Maximum angle of polyaxial pedicle screw is 28 degrees, facilitating placement of screw and rod.
Large diameter Iliac Screws provided for sacroiliac reduction and internal fixation.
